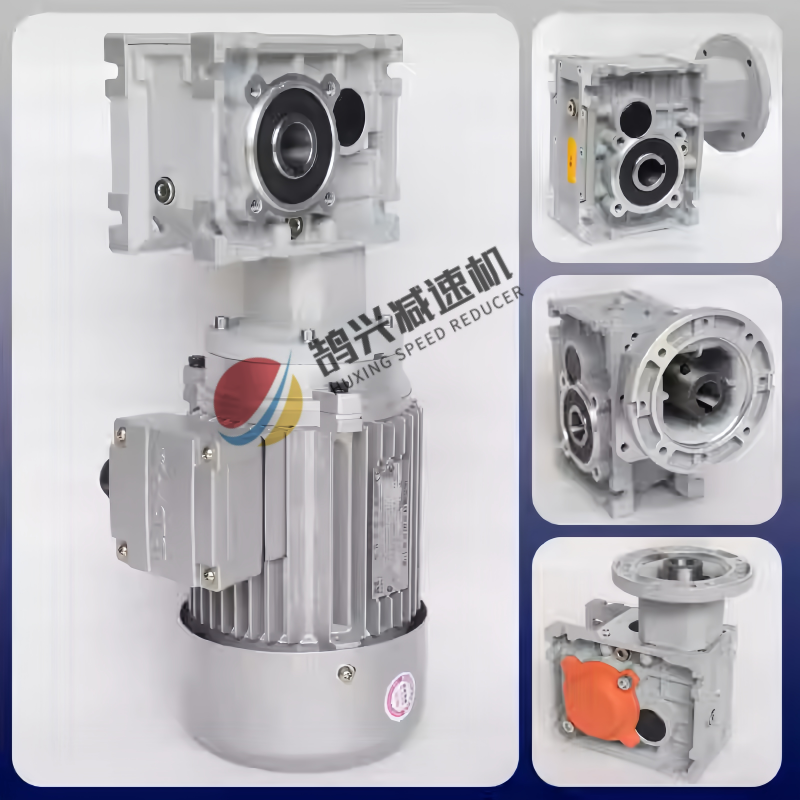

KM Series Hypoid Gear Reduction Motor
- Hypoid Gear Reduction Motor
- hypoid curved tooth meshing design
- large contact area strong load capacity
- smooth meshing ultra-low operating noise
- high transmission efficiency low energy loss

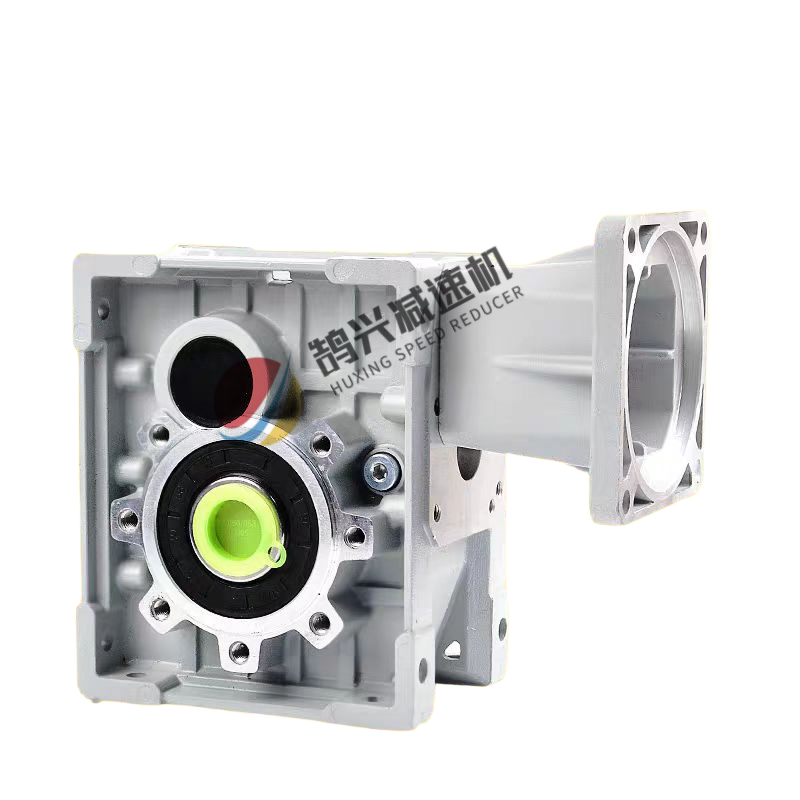

- 90° right angle compact layout
- flexible installation space saving

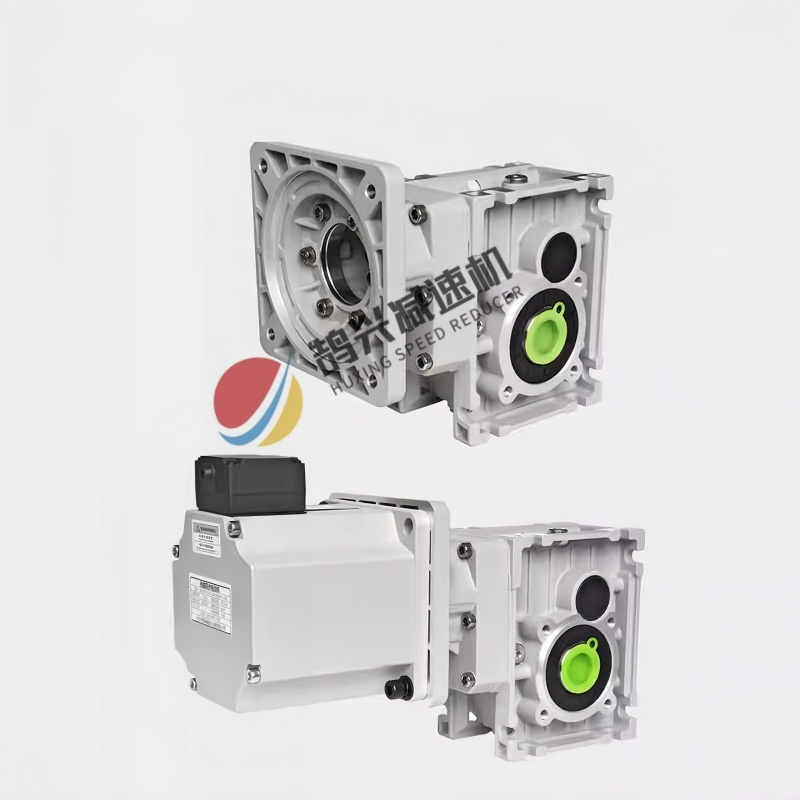

- low backlash stable positioning
- fully sealed dustproof oil resistant
- multiple output forms optional
- long service life stable operation
- customizable parameters for automation equipment
Product Overview of Huxing KM Series Hyperbolic Gear Reduction Motor
Characteristics and Applications
The hypoid gear reduction motor adopts a hypoid gear design, which combines the low noise of worm gear
reducers and the high efficiency of bevel gears in terms of performance

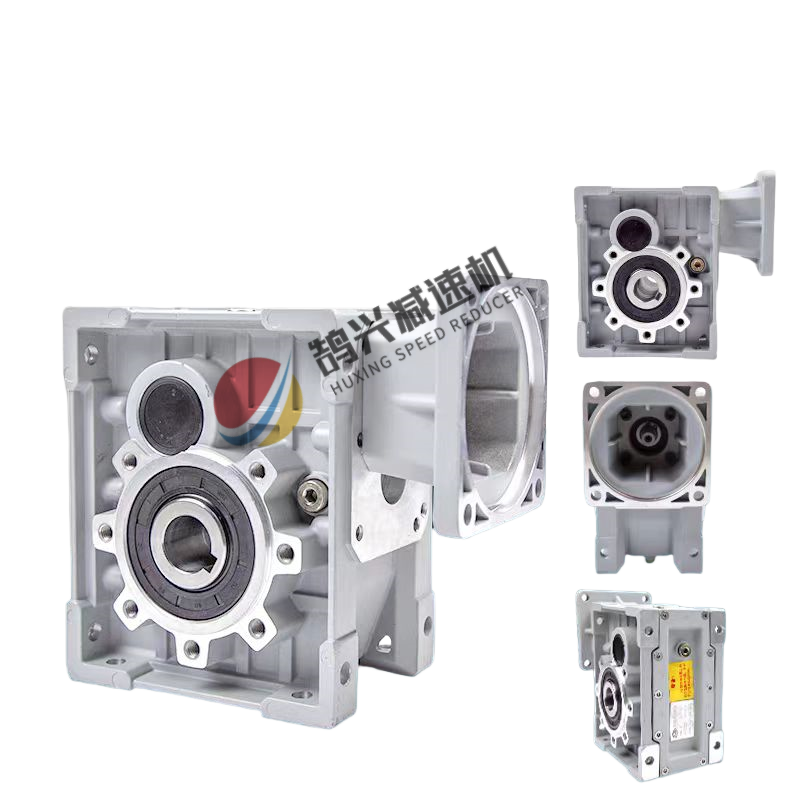

High Efficiency and Energy Saving
The sliding friction of hypoid gears is relatively low, with an efficiency of up to 98%. The efficiency of hypoid
gear reduction motors is about 15% -40% higher than that of worm gear reducers.
compact size
The center distance of hypoid gears can be reduced by 30% compared to the center
distance of worm gear pairs resulting in a smaller size.
low noise
The meshing of bevel gears is generally less than 2 teeth, while hypoid gears have a meshing of more
than 2.5 teeth.
Their operating noise is lower than that of bevel gears, and their strength
strength, and longevity are higher.
Hypoid gears are made of special steel and undergo advanced processing
and carburizing hardening processes
and their strength and lifespan are much higher than those of worm gear reducers;
The hypoid gear reducer adopts a high-strength housing design, increases the gear shaft diameter
and selects high-precision bearings with stronger load-bearing capacity during design, which is suitable
for workplaces with more stringent torque requirements.
Easy to install
Not limited by the direction of the output axis, while providing a series of hollow shaft products
making it more flexible and convenient for users to choose and install.
widely used
Suitable for precision conveying, lifting, printing, packaging, medical, food, electronics
and other automatic and semi-automatic equipment, it is also very suitable as a supporting device in facilities
such as film and television equipment, stage lighting, fitness equipment, etc.
Precautions
1. Installation surface: Fix the precision machined plane with four bolts
2. Installation direction: Due to the use of grease lubrication method, it can be installed in any direction
3. When installing accessories on the output shaft, please do not use a hammer to strike vigorously
to avoid damaging the internal parts of the gearbox.
4.During transportation, the load torque, O, H, and L must be kept within the allowable range.
5. Do not prevent the operation of single-phase motors,
as there may be reverse and rapid rotation.
Please keep the surface temperature of the motor and reducer below 80 ℃.
