Solar Tracking Gear Motor: The Precision Drive Behind Maximum Solar Yield
The solar tracking gear motor is the critical electromechanical actuator that
converts electrical energy into the precise, low-speed,
high-torque rotational movement required to orient photovoltaic
panels toward the sun.
Without a reliable gear motor with the right gear reduction,
even the most sophisticated tracking algorithm produces no real-world movement.
By enabling panels to follow the sun's
path—from sunrise to sunset—tracking systems can
harvest **25% to 40% more energy** than fixed installations.
Three Primary Gearmotor Types for Solar Tracking:

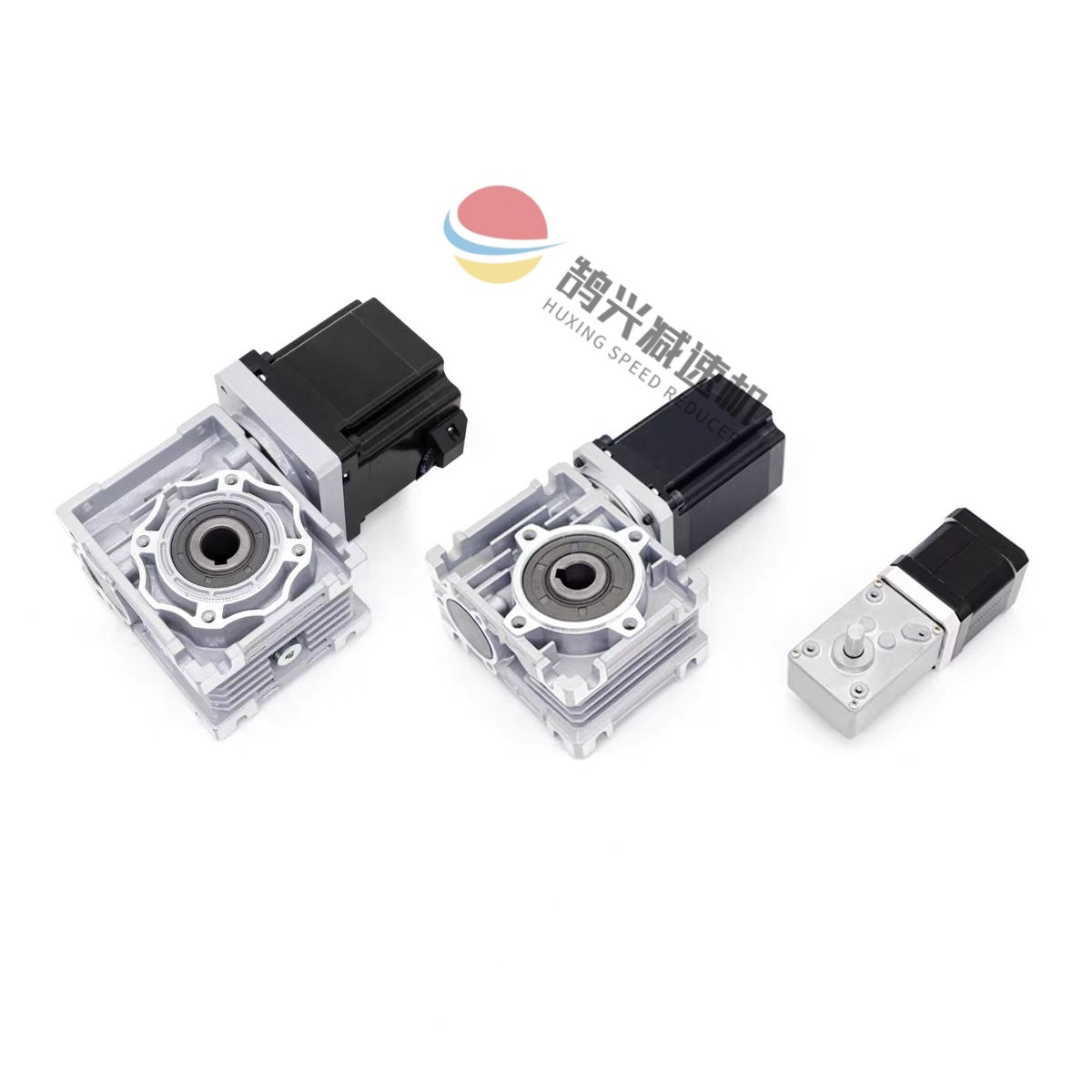

**Worm Gear Motors** are the most widely used solution for
utility-scale solar farms. They deliver very high gear reduction
ratios—typically 5:1 to 100:1 or more—in a compact form factor.
Their **inherent self-locking property** prevents back-driving
when the motor is de-energized, meaning wind loads
cannot rotate the mechanism backward, eliminating
the need for separate braking systems.

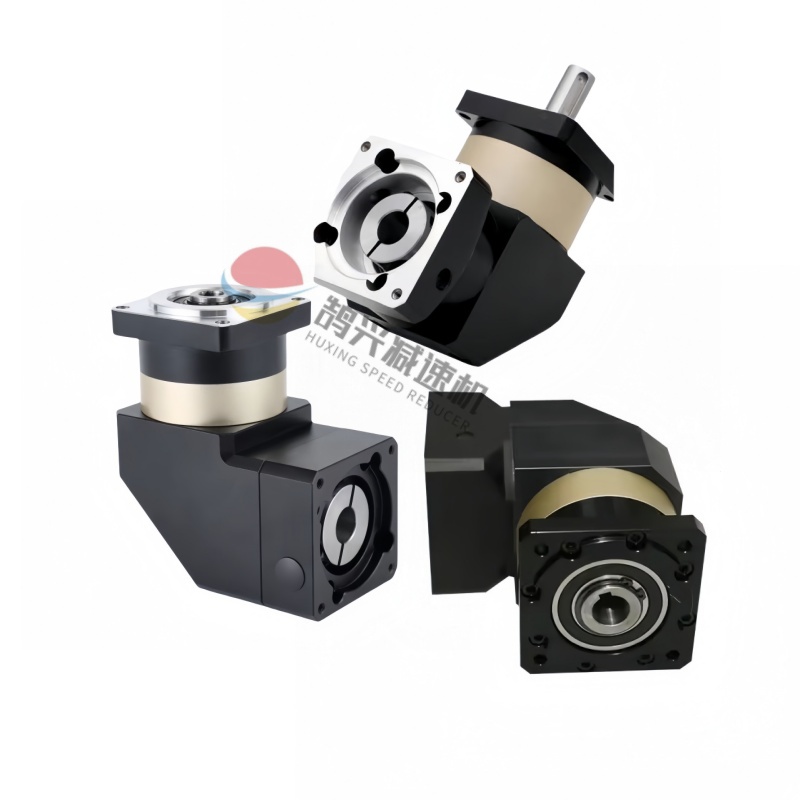

**Planetary Gearboxes** offer exceptional precision with backlash
as low as 1–3 arcmin, enabling sun tracking accuracy
within **±0.1°** when paired with servo/stepper motors and encoders.
They feature high torque density, strong impact resistance,
and fully sealed designs for outdoor durability in extreme temperatures (-40°C to 60°C).
**Slew Drives** combine a worm gear reducer, slewing bearing, and sealing system
into a compact, self-contained unit designed to handle heavy loads and provide
high torque output. They convert radial and axial loads
into smooth 360° rotation—available in single-axis (horizontal/tilted) and dual-axis configurations.
**Critical Selection Parameters:** Backlash (directly impacts tracking accuracy—even 1° deviation
can reduce annual yield by 1–2%), torque capacity (output torque ranges from 200 Nm to 63,000 Nm),
holding torque for wind load resistance, IP rating (IP65/IP66 for outdoor exposure), and 25+ year service life.
